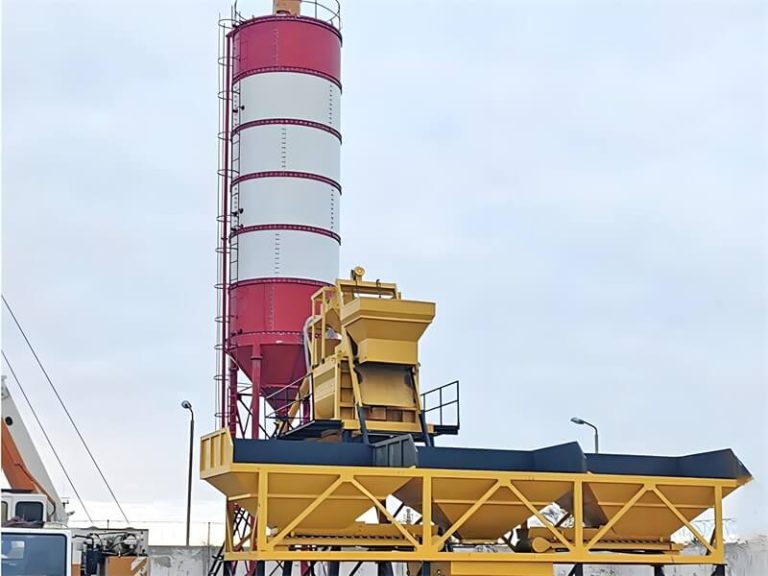

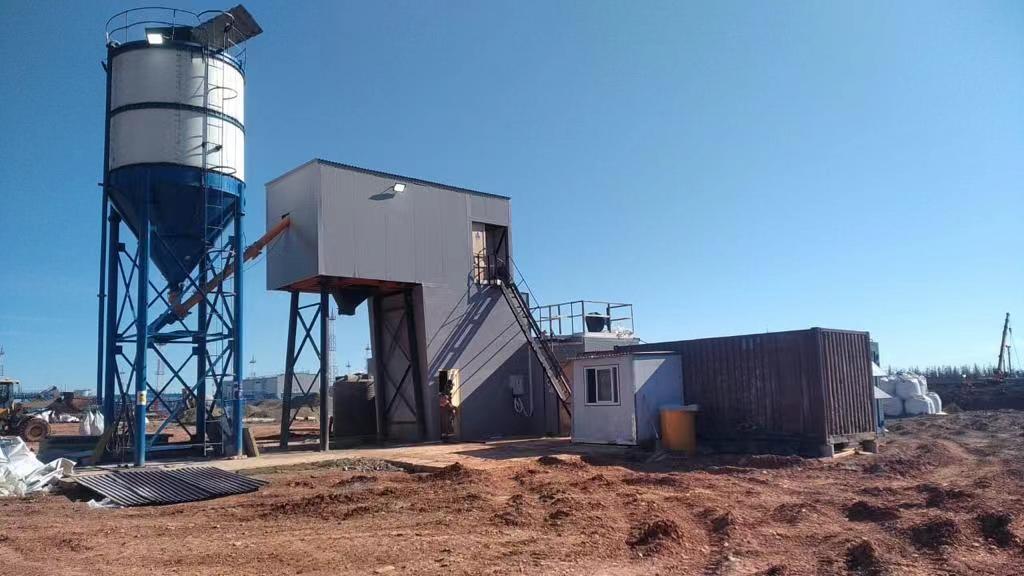

HZS25 Concrete Batching Plant

Description:HZS25 concrete batching plant (Skip hoist/ Lifting bucket) is an ideal solution for small and medium-sized projects. With a production capacity of 25m³/h, it stands out with its compact structure and high efficiency. It is very popular in various projects of building ,road, precast plant, block making, etc.

Max productivity(m³/h):25

Discharging height(m):1.5–3.8

Working cycle time(s):72

Outline dimension(mm):11693×13060×17245

Total Power(kw):57.25

product Description

HZS25 concrete batching plant (Skip hoist/ Lifting bucket) is an ideal solution for small and medium-sized projects. With a production capacity of 25m³/h, it stands out with its compact structure and high efficiency. It is very popular in various projects of building ,road, precast plant, block making, etc.

Parameter

Model		HZS25	HZS35	HZS50	HZS75
Global parameter	Max productivity (m³/h)	25	35	50	75
	Discharging height(m)	1.5–3.8	1.6–3.8	3.8	3.8
	Working cycle time(s)	72	72	72	72
	Outline dimension(mm)	11693×13060×17245	12922×13000×17245	15689×12500×18704	17608×12500×18704
	Total Power(kw)	57.25	75	88	150
Mixer	Model	JS500	JS750	JS1000	JS1500
Batcher	Model	PLD800	PLD1200	PLD1600	PLD2400
Aggregates feeding Mode		Skip hoist	Skip hoist	Skip hoist	Skip hoist
Pneumatic system	Air compressor	1.0–7	1.0–7	1.5–7	1.8–7
	Discharge pressure(MPa)	0.8	0.8	0.8	0.8
	Displacement (m³/min)	1.67	1.67	1.67	1.67
	Motor power	5.5	5.5	7.5	11
Measurement system	Aggregate weighing accuracy	±2%	±2%	±2%	±2%
	Cement weighing accuracy	±1%	±1%	±1%	±1%
	Water weighing accuracy	±1%	±1%	±1%	±1%
	Additive weighing accuracy	±1%	±1%	±1%	±1%
Cement silo Advice		1x50t	1x100t	1x100t	2x100t
Loading Advice(1silo included)		1*40HQ container	1*40HQ container	2*40HQ containers	2*40HQ containers

Features

01.

Low-cost transport and only minimum foundation works and small footprint (12 m x 15 m site area needed)

02.

Easy installation and Quick Startup
(Installation takes 7- 10 days, reserved cables marked with letters for connection.)

03.

Easy maintenance and low operating cost.

04.

High production performance with optimized
automation system.

05.

Long-term after-sales service (problem solution&
parts supply )

06.

Suitable for on-site production, shotcrete, ready-
mix concrete and concrete for precast purposes.

Accessories

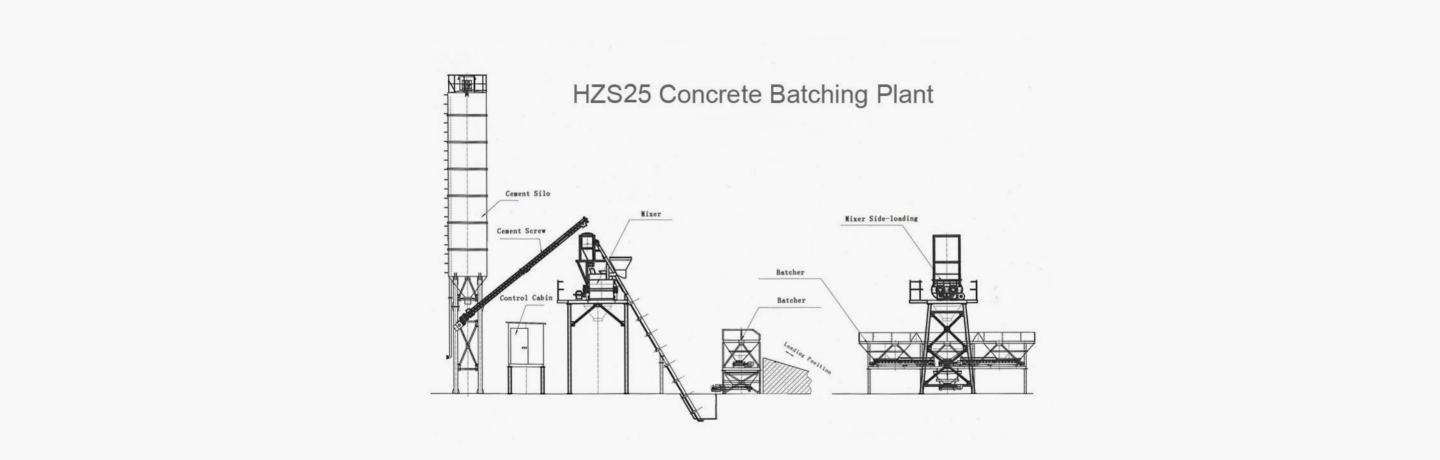

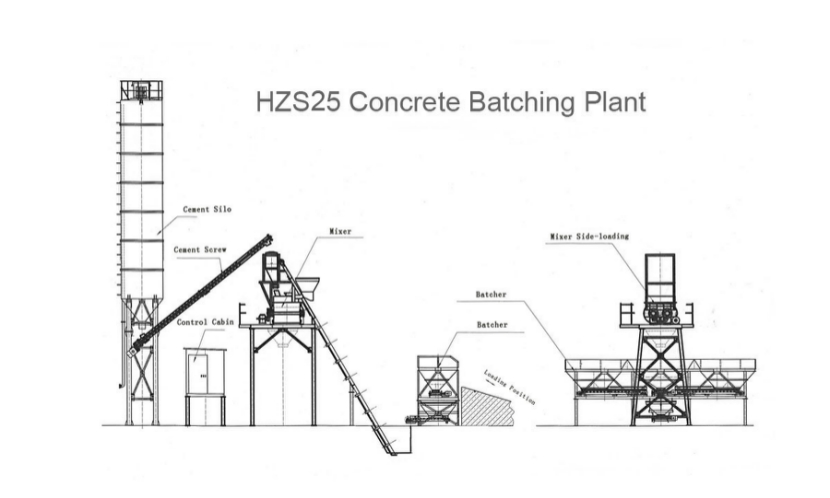

HZS25 concrete batching plant refers to the concrete plant with a JS500 twin-shaft concrete mixing , weighing system,a PLD800 aggregate batching machine, a skip hopper feeder, cement silo,screw conveyor, controlling system and other accessories, its production capacity is 25m³/h .

01. Mixing system+

01. Mixing system

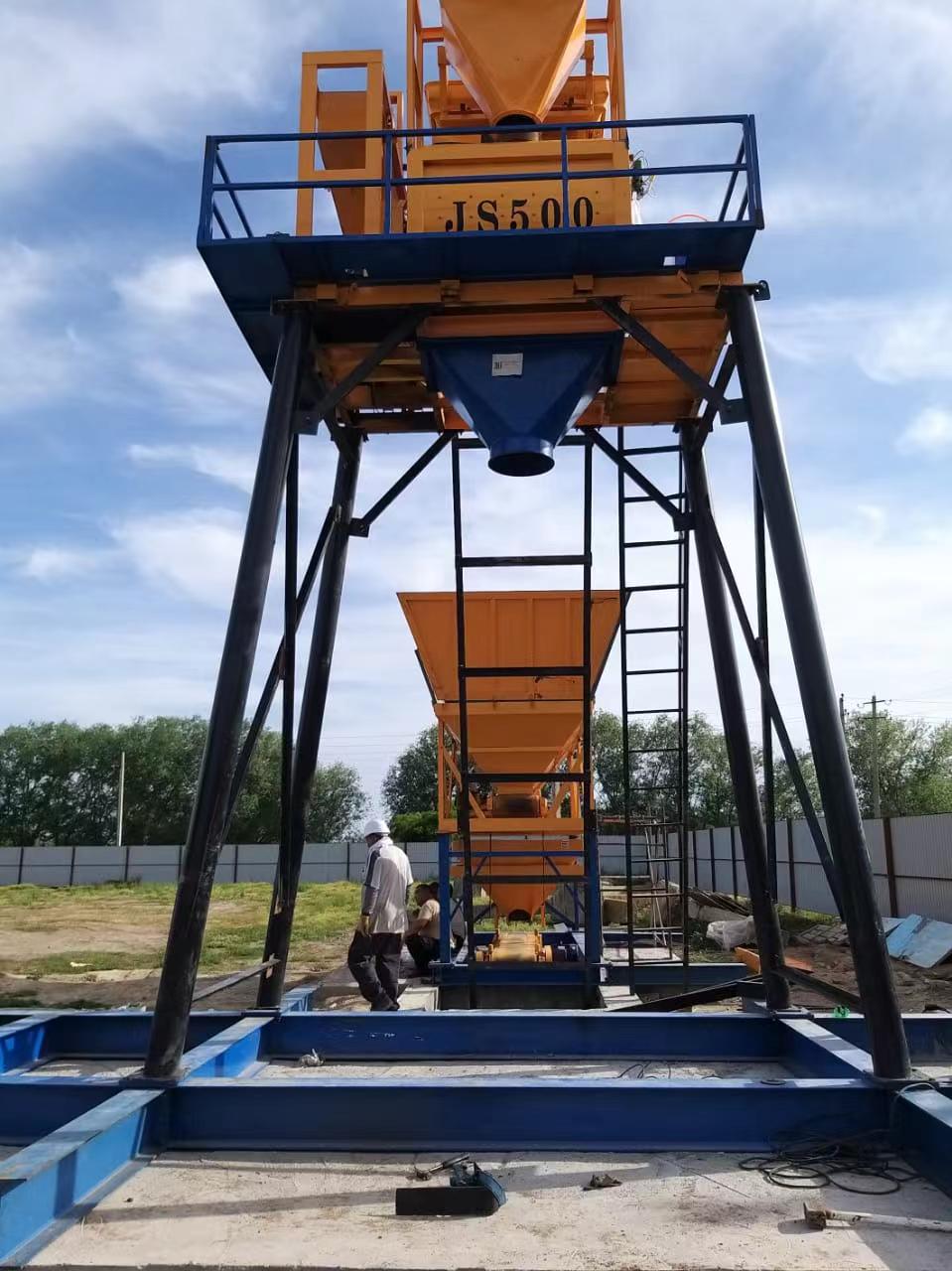

JS500 twin shaft mixer with 0.5 m³ output, Shaft end sealing design prevent leakage, Blades adopt wear-resistant materials.

–

02. Batching system+

02. Batching system

PLD800 ,Cumulative Accurate weighing with sensors, can batch 2-3 kinds of aggregates automatically according to the mixture ratio set by users,all-steel structure, discharge height can be customerized.

–

03. Measurement/weighing system+

03. Measurement/weighing system

Aggregates, cement & water & additives required for each batch of concrete.

–

04. Feeding system+

04. Feeding system

The bucket lift concrete batching plant lifts the aggregate directly into the mixer through the bucket/lifting hopper.

–

05. Scew conveyor+

05. Scew conveyor

Diameter:ø219mm, length can be tailored,It can convey cement and flyash and other materials economically and effectively unclogging.

–

06. Cement silo +

06. Cement silo

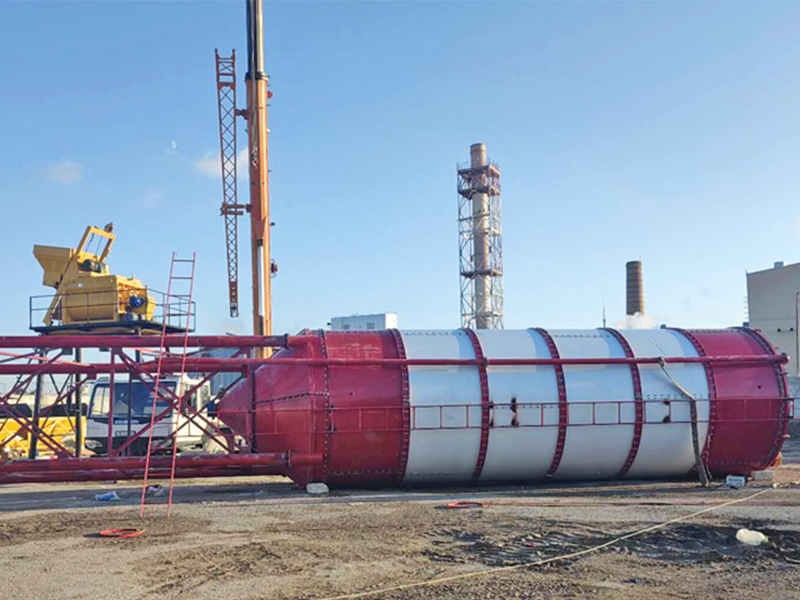

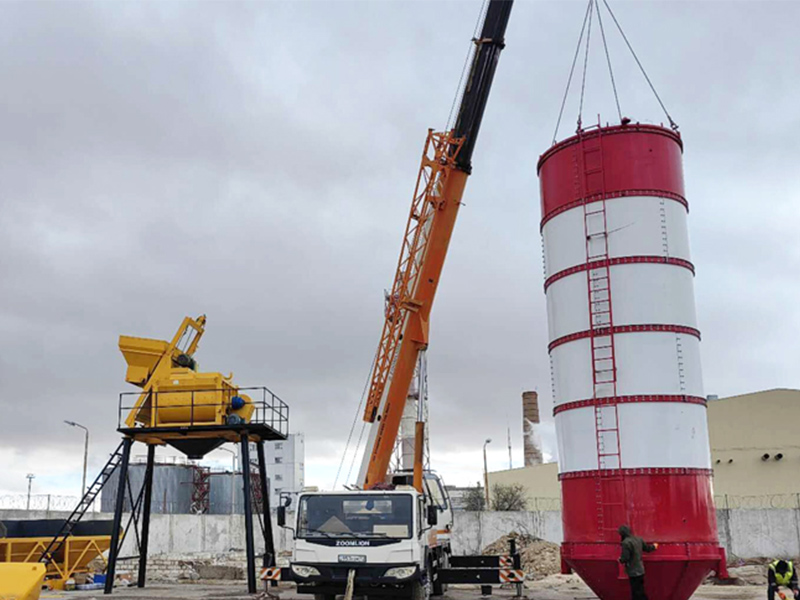

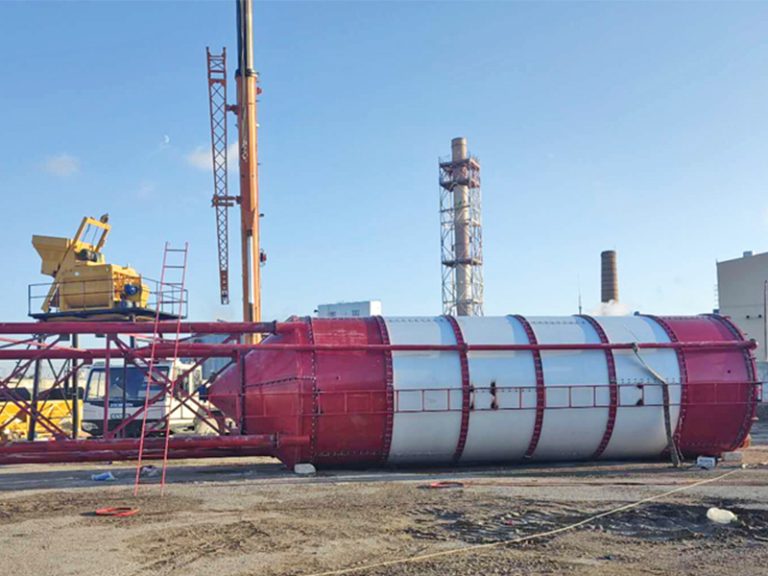

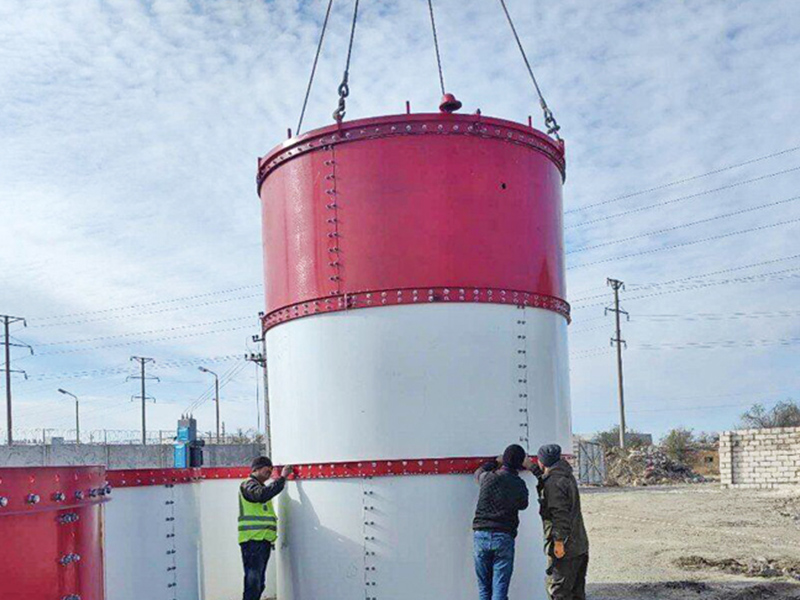

The silo is composed of the cover, wall sections, cones and supporting legs. It is also equipped with dust collector, butterfly valve, arch broken and level indicators etc. Pieced type when transport, and easy to assemble (a 100T capacity silo can be assembled by 3 men in 3 days)

–

07. Control system+

07. Control system

PC+PLC control system ensures high reliability Simple/Standard for optional as your requirements.

–
